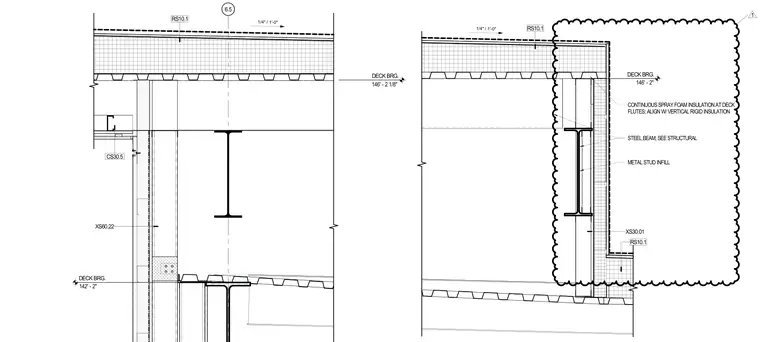

An exterior wall to roof junction features a steel beam supporting roof and floor decks with specified deck bearing elevations. Continuous spray foam insulation fills the deck flutes and aligns with vertical rigid insulation behind metal stud infill. Wall framing relies on cold-formed metal studs with structural steel elements sized per structural drawings.
6.5 RS10.1 DECK BRG. 146' - 2 1/8" 1/4" / 1'-0" CS30.5 XS60.22 DECK BRG. 142' - 2" 1/4" / 1'-0" RS10.1 XS30.01 RS10.1 DECK BRG. 146' - 2" STEEL BEAM; SEE STRUCTURAL METAL STUD INFILL CONTINUOUS SPRAY FOAM INSULATION AT DECK FLUTES; ALIGN W/ VERTICAL RIGID INSULATION 1
