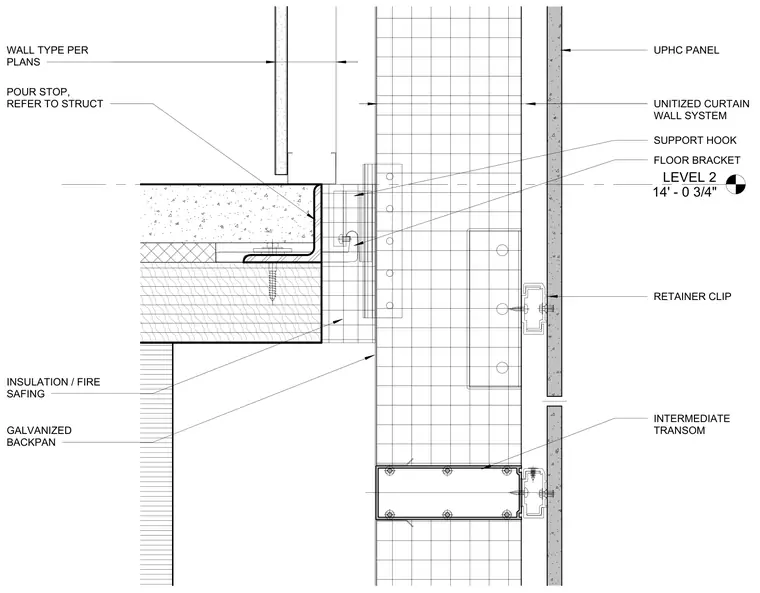

The unitized curtain wall system connects to the floor slab edge using a floor bracket and support hook anchored to the building structure, with a pour stop positioned per structural drawings. Insulation and fire safing are installed alongside a galvanized backpan behind the glazing line. UPHC panels attach to the system using retainer clips and intermediate transoms to complete the exterior cladding assembly.
LEVEL 2 14' - 0 3/4" UNITIZED CURTAIN WALL SYSTEM UPHC PANEL RETAINER CLIP INSULATION / FIRE SAFING INTERMEDIATE TRANSOM FLOOR BRACKET SUPPORT HOOK POUR STOP, REFER TO STRUCT WALL TYPE PER PLANS GALVANIZED BACKPAN
