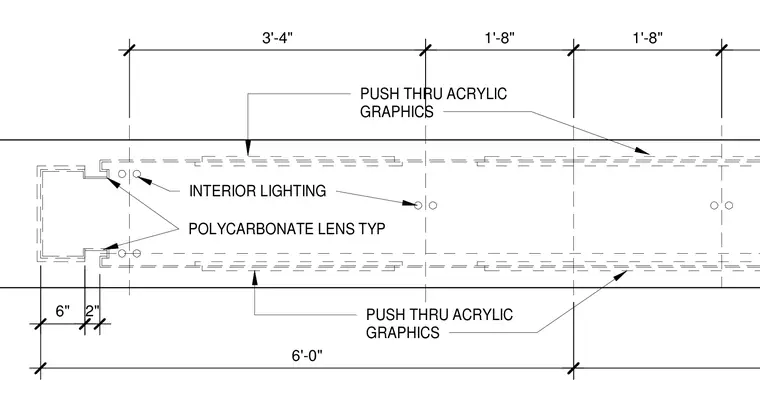

An internally illuminated sign assembly features push-through acrylic graphics mounted into a housing with typical polycarbonate lenses. Interior lighting provides backlighting across the six-foot overall length with dimensioned spacing intervals of three feet four inches, one foot eight inches, and one foot eight inches.
INTERIOR LIGHTING POLYCARBONATE LENS TYP PUSH THRU ACRYLIC GRAPHICS PUSH THRU ACRYLIC GRAPHICS 3'-4" 1'-8" 1'-8" 6'-0" 6" 2"
