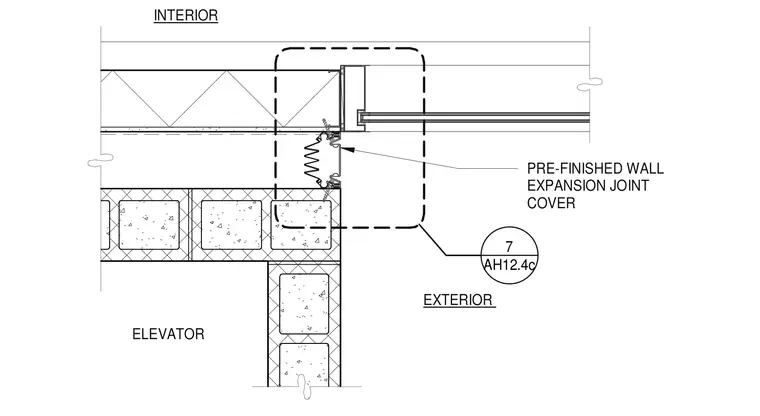

A pre-finished wall expansion joint cover bridges the gap between an interior partition and an exterior wall assembly, accommodating structural movement. The system features a flexible bellows cover secured with mounting tracks anchored to the adjacent wall framing and masonry construction. The exterior side maintains alignment with the building envelope while the interior side transitions smoothly into the finished wall plane.
