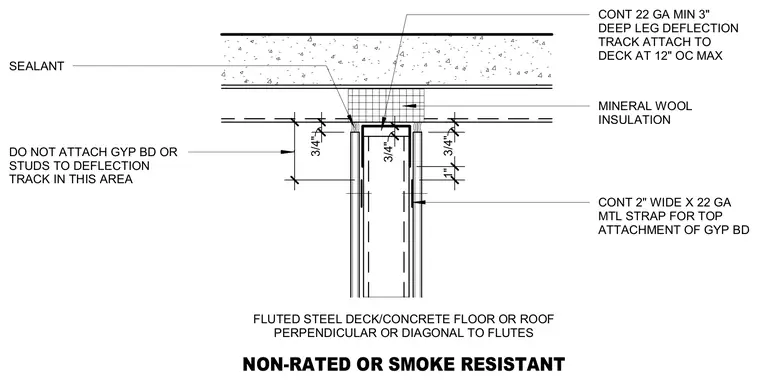

A continuous twenty-two gauge minimum three-inch deep leg deflection track is attached to the fluted steel deck at twelve inches on center maximum. Mineral wool insulation and sealant fill the joint above the partition. Gypsum board is secured using a continuous two-inch wide by twenty-two gauge metal strap for top attachment, leaving the studs left unwelded and unattached to the deflection track within the specified clearance zone.
NON-RATED OR SMOKE RESISTANT FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PERPENDICULAR OR DIAGONAL TO FLUTES CONT 2" WIDE X 22 GA MTL STRAP FOR TOP ATTACHMENT OF GYP BD CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA SEALANT 3/4" . 3/4" 3/4" MINERAL WOOL INSULATION 1"
