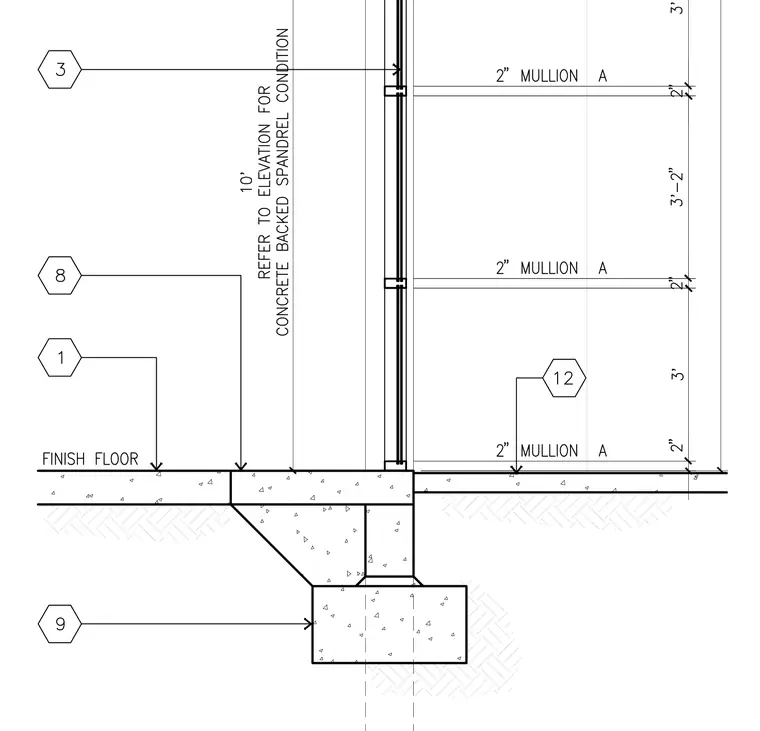

A two-inch mullion meets a concrete finish floor slab supported by a concrete grade beam. Vertical dimensions indicate three feet and three feet two inches between mullion intersections, alongside a ten-foot dimension referencing the elevation for concrete backed spandrel conditions. The glazing assembly rests directly on the foundation slab above a sub-grade continuous footing. Detail callouts in hexagonal bubbles reference related construction sheets throughout the assembly.
