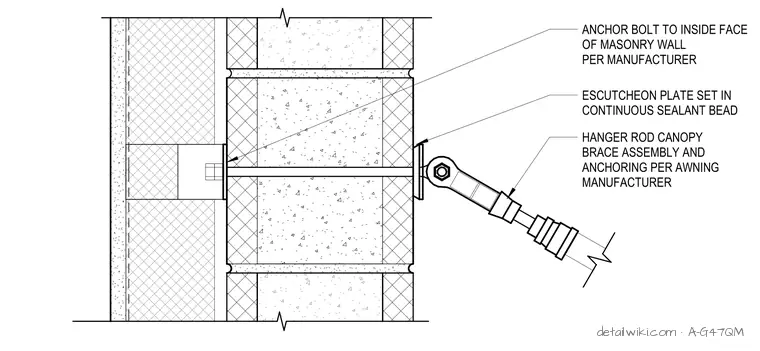

This assembly secures an awning canopy hanger rod to a masonry wall using a through-bolt connection. The hanger rod brace assembly attaches to the exterior face of the masonry, bearing against an escutcheon plate set in a continuous sealant bead. A threaded anchor bolt extends through the masonry wall to an interior face plate, with the specific bolt size and type determined by the manufacturer. The hanger rod canopy brace assembly and its associated anchoring hardware are installed per the awning manufacturer's specifications.
