A Type C continuous 6-inch by 14-gauge steel plate is fastened horizontally across light-gauge metal wall studs to support heavy wall-hung cabinets and equipment. The assembly features sixteen-gauge screw studs, including double studs at openings, with continuous stud flanges. A four-inch by one-and-a-quarter-inch by fourteen-gauge track channel stiffener is welded typically to the continuous plate with a one-eighth-inch fillet weld, and secured with number ten flat head sheet metal screws. The continuous plate provides structural backing for upper cabinets and wall-mounted equipment up to two hundred pounds per foot.

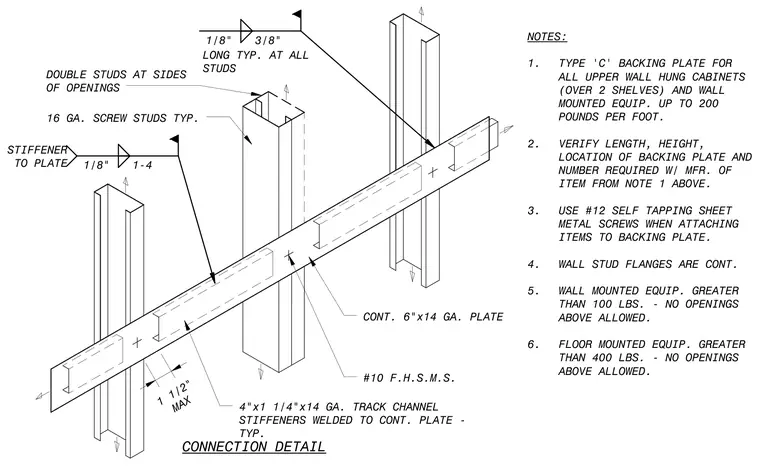

DOUBLE STUDS AT SIDES OF OPENINGS 16 GA. SCREW STUDS TYP. 4"x1 1/4"x14 GA. TRACK CHANNEL STIFFENERS WELDED TO CONT. PLATE - TYP. #10 F.H.S.M.S. CONT. 6"x14 GA. PLATE 1/8" 3/8" LONG TYP. AT ALL STUDS 1/8" 1-4 STIFFENER TO PLATE 1 1/2" MAX CONNECTION DETAIL NOTES: 1. TYPE 'C' BACKING PLATE FOR ALL UPPER WALL HUNG CABINETS (OVER 2 SHELVES) AND WALL MOUNTED EQUIP. UP TO 200 POUNDS PER FOOT. 2. VERIFY LENGTH, HEIGHT, LOCATION OF BACKING PLATE AND NUMBER REQUIRED W/ MFR. OF ITEM FROM NOTE 1 ABOVE. 3. USE #12 SELF TAPPING SHEET METAL SCREWS WHEN ATTACHING ITEMS TO BACKING PLATE. 4. WALL STUD FLANGES ARE CONT. 5. WALL MOUNTED EQUIP. GREATER THAN 100 LBS. - NO OPENINGS ABOVE ALLOWED. 6. FLOOR MOUNTED EQUIP. GREATER THAN 400 LBS. - NO OPENINGS ABOVE ALLOWED. » JT \ <^ > ------------- > 4/ -f •4> 4/ <u <1 jy'
