A pipe penetration pierces a roof assembly consisting of three-inch rigid insulation and three-quarter-inch plywood sheathing adhered with bonding adhesive beneath an EPDM membrane. Single-ply quickprime prepares the pipe surface for an EPDM twelve-inch flashing, which extends down with a six-inch EPDM flashing lapped over the roof membrane and secured with a continuous bead of lap sealant. An optional field-fabricated metal hood sits above the flashing, sealed at the top with a high-grade sealant. The pipe must be anchored for stability, and lap sealant is applied between the penetration and pre-molded pipe flashing prior to the installation of the clamping ring.

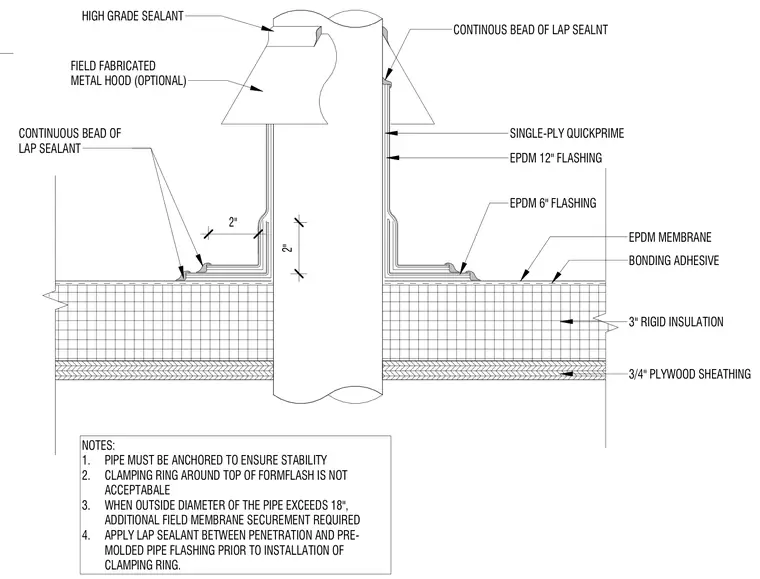

CONTINUOUS BEAD OF LAP SEALANT EPDM 6" FLASHING EPDM MEMBRANE CONTINOUS BEAD OF LAP SEALNT 2" 2" EPDM 12" FLASHING SINGLE-PLY QUICKPRIME FIELD FABRICATED METAL HOOD (OPTIONAL) HIGH GRADE SEALANT 3" RIGID INSULATION 3/4" PLYWOOD SHEATHING BONDING ADHESIVE NOTES: 1. PIPE MUST BE ANCHORED TO ENSURE STABILITY 2. CLAMPING RING AROUND TOP OF FORMFLASH IS NOT ACCEPTABALE 3. WHEN OUTSIDE DIAMETER OF THE PIPE EXCEEDS 18", ADDITIONAL FIELD MEMBRANE SECUREMENT REQUIRED 4. APPLY LAP SEALANT BETWEEN PENETRATION AND PRE- MOLDED PIPE FLASHING PRIOR TO INSTALLATION OF CLAMPING RING.
