Curtain Wall Sill at Steel Floor Framing

Materials

Steel Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Curtain Walls Facades / Cladding Ceilings Floors / Slabs

About this detail

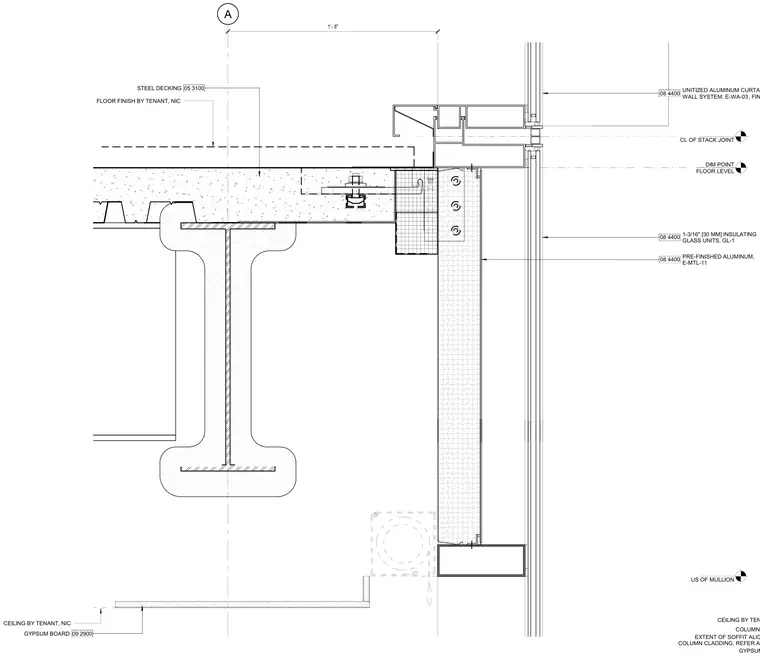

A unitized aluminum curtain wall system with one-and-three-sixteenth-inch insulating glass units bears past the edge of a steel decking and concrete floor slab supported by a wide-flange steel beam. The curtain wall framing aligns with a center line of stack joint and a floor level dimension point. An interior gypsum board soffit and ceiling installed by the tenant finish the underside, with the extent of the soffit aligning with the column cladding beyond. Pre-finished aluminum panels complete the opaque spandrel zone below the vision glass.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
