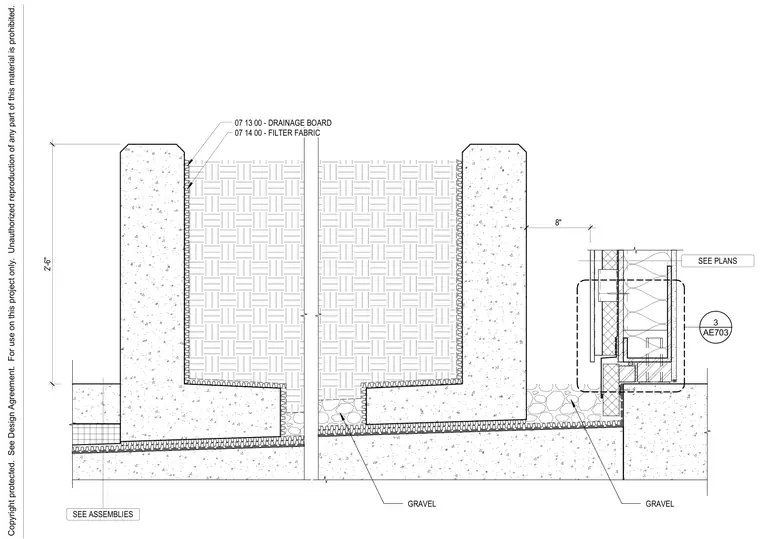

Level 2 concrete planter assembly with a two-foot-six-inch wall height and eight-inch gravel zones. The concrete planter structure is lined internally with section 07 13 00 drainage board and section 07 14 00 filter fabric. Gravel fill is specified at the base and exterior interface, with additional assembly references directed per architectural plans.
AE703 3 SEE ASSEMBLIES 07 14 00 - FILTER FABRIC 07 13 00 - DRAINAGE BOARD SEE PLANS 2'-6" 8" GRAVEL GRAVEL Copyright protected. See Design Agreement. For use on this project only. Unauthorized reproduction of any part of this material is prohibited.
