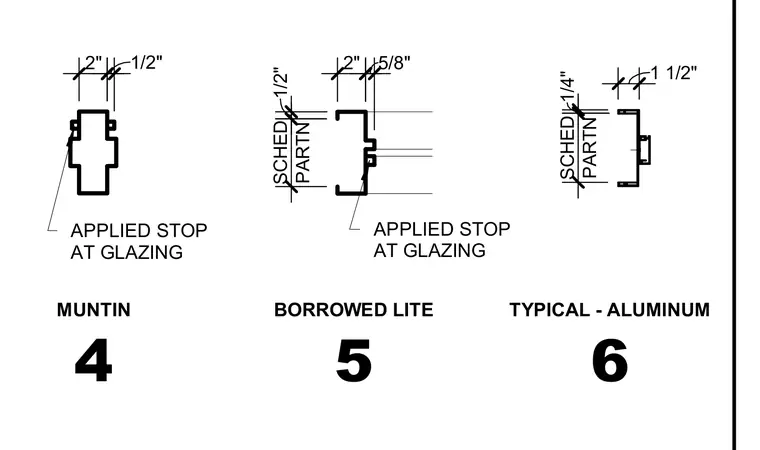

Aluminum framing profiles for interior glazing feature applied stops with dimensions of two inches and one-half inch, two inches and five-eighths inch, and one and one-half inch by one-quarter inch per the partition schedule. The extruded aluminum sections accommodate glass lites with mechanical applied stops secured along the glazing pocket.
MUNTIN 4 BORROWED LITE 5 2" 1/2" APPLIED STOP AT GLAZING 2" 5/8" PARTN SCHED 1/2" APPLIED STOP AT GLAZING TYPICAL - ALUMINUM 6 1 1/2" 1/4" PARTN SCHED
