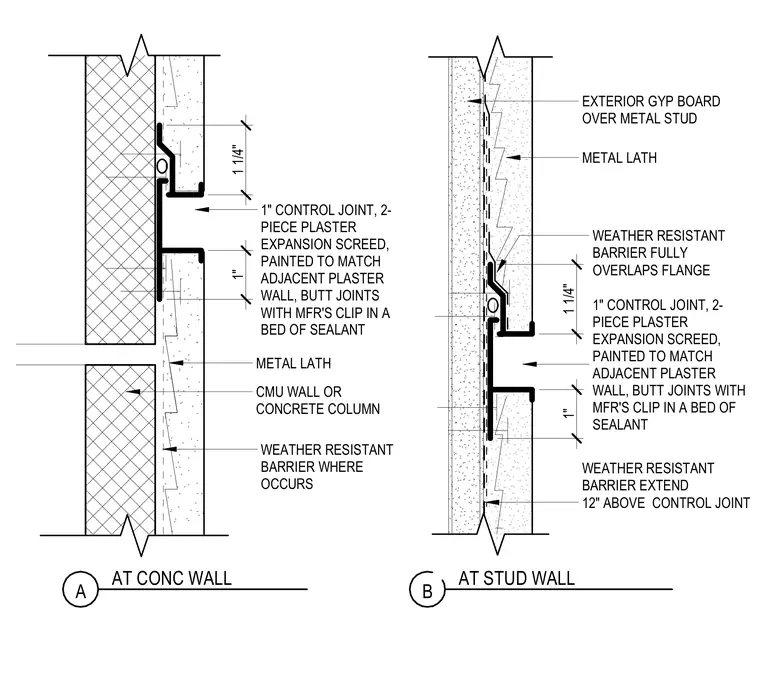

A one-inch two-piece plaster expansion screed is installed at control joints over both a concrete or concrete masonry unit wall and a metal stud wall with exterior gypsum board. The metal lath and weather-resistant barrier are detailed to overlap the expansion screed flange and extend twelve inches above the control joint where required. Butt joints are set in a bed of sealant and secured with the manufacturer's clip, and the assembly is painted to match the adjacent plaster wall.
WEATHER RESISTANT BARRIER EXTEND 12" ABOVE CONTROL JOINT WEATHER RESISTANT BARRIER FULLY OVERLAPS FLANGE 1" CONTROL JOINT, 2- PIECE PLASTER EXPANSION SCREED, PAINTED TO MATCH ADJACENT PLASTER WALL, BUTT JOINTS WITH MFR'S CLIP IN A BED OF SEALANT 1" CONTROL JOINT, 2- PIECE PLASTER EXPANSION SCREED, PAINTED TO MATCH ADJACENT PLASTER WALL, BUTT JOINTS WITH MFR'S CLIP IN A BED OF SEALANT METAL LATH EXTERIOR GYP BOARD OVER METAL STUD METAL LATH CMU WALL OR CONCRETE COLUMN AT CONC WALL A AT STUD WALL B 1 1/4" 1" 1 1/4" 1" WEATHER RESISTANT BARRIER WHERE OCCURS
