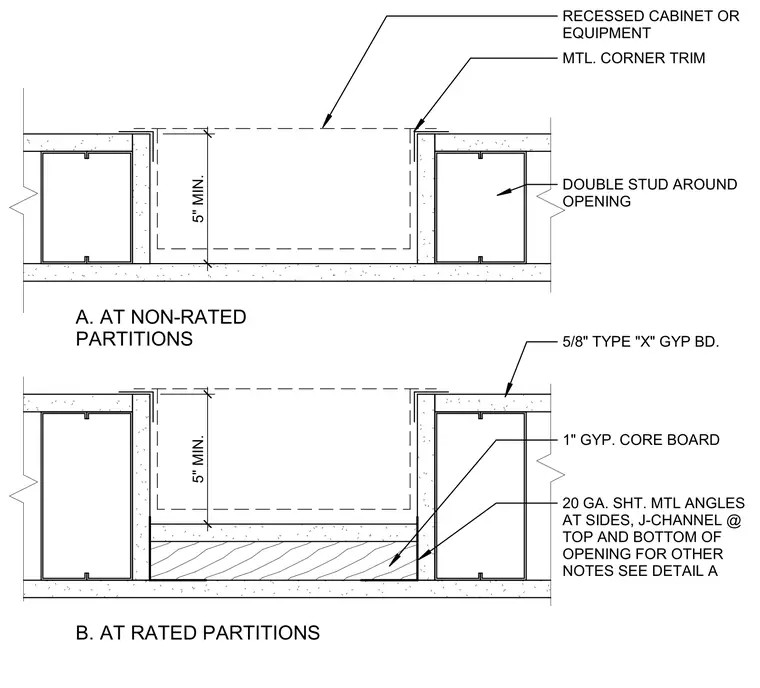

A recessed cabinet or electrical panel is framed within stud partitions using double studs around the opening and finished with metal corner trim. Non-rated partitions feature five-inch minimum depth clearances with gypsum board facings. Rated partitions incorporate one-inch gypsum core boards, five-eighths-inch Type X gypsum board, and twenty-gauge sheet metal angles at the sides with J-channels at the top and bottom of the opening.
MTL. CORNER TRIM 5" MIN. 5" MIN. RECESSED CABINET OR EQUIPMENT DOUBLE STUD AROUND OPENING B. AT RATED PARTITIONS 5/8" TYPE "X" GYP BD. 1" GYP. CORE BOARD 20 GA. SHT. MTL ANGLES AT SIDES, J-CHANNEL @ TOP AND BOTTOM OF OPENING FOR OTHER NOTES SEE DETAIL A A. AT NON-RATED PARTITIONS
