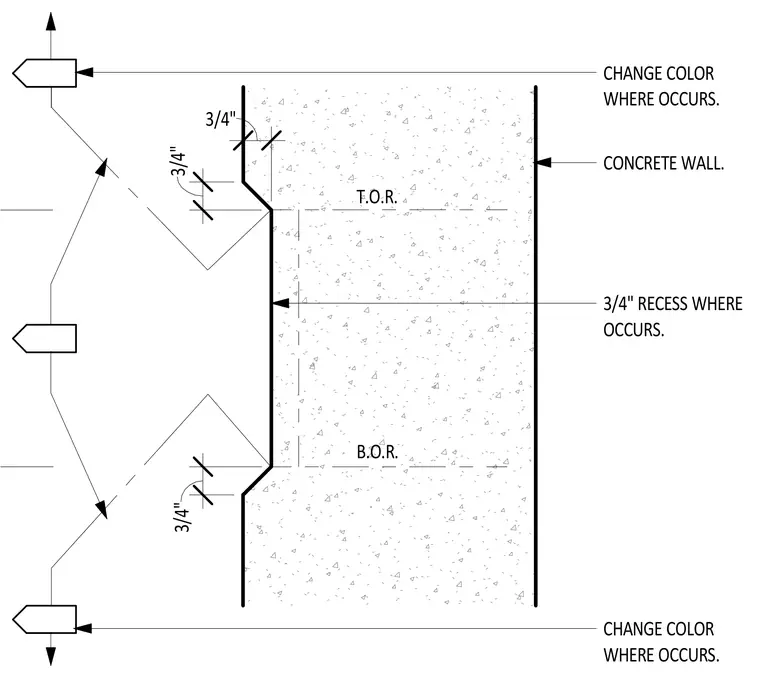

A concrete tilt-up wall panel features a three-quarter-inch recess where specified, bounded by the top of recess and bottom of recess reference lines. A color change is applied to the wall surface at the recessed transition locations. Dimensions indicate three-quarter-inch setbacks at the upper and lower chamfered edges of the reveal.
CONCRETE WALL. CHANGE COLOR WHERE OCCURS. 3/4" RECESS WHERE OCCURS. CHANGE COLOR WHERE OCCURS. 3/4" 3/4" 3/4" T.O.R. B.O.R.
