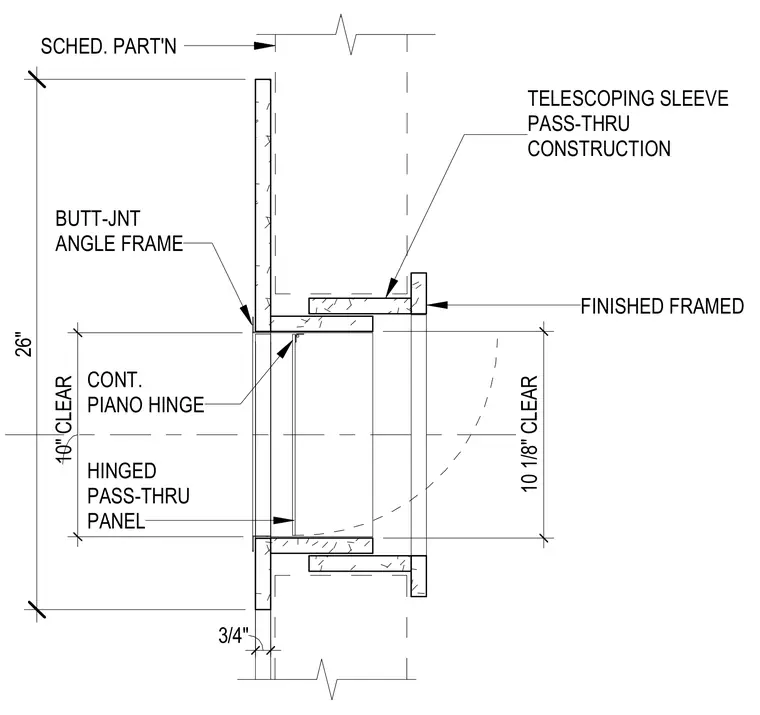

A scheduled partition features a telescoping sleeve pass-through construction with a finished framed opening. A hinged pass-through panel is hung using a continuous piano hinge attached to a butt-joint angle frame. The clear opening dimensions are ten inches vertically with a twenty-six inch overall partition height.
SCHED. PART'N BUTT-JNT ANGLE FRAME FINISHED FRAMED HINGED PASS-THRU PANEL CONT. PIANO HINGE TELESCOPING SLEEVE PASS-THRU CONSTRUCTION 3/4" 26" 10" CLEAR 10 1/8" CLEAR
