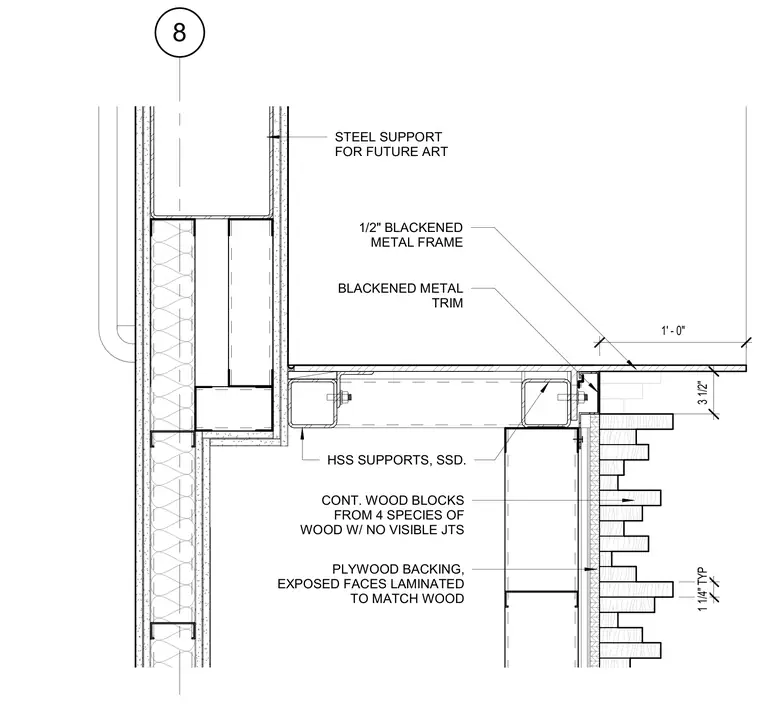

A specialized interior wall display assembly anchored by hollow structural section supports. A half-inch blackened metal frame with matching trim integrates with continuous wood blocks sourced from four wood species with no visible joints. Plywood backing with exposed faces is laminated to match the wood finish. Concealed steel supports are provided for future art installations.
8 PLYWOOD BACKING, EXPOSED FACES LAMINATED TO MATCH WOOD CONT. WOOD BLOCKS FROM 4 SPECIES OF WOOD W/ NO VISIBLE JTS 1 1/4" TYP STEEL SUPPORT FOR FUTURE ART 3 1/2" 1' - 0" 1/2" BLACKENED METAL FRAME BLACKENED METAL TRIM HSS SUPPORTS, SSD.
