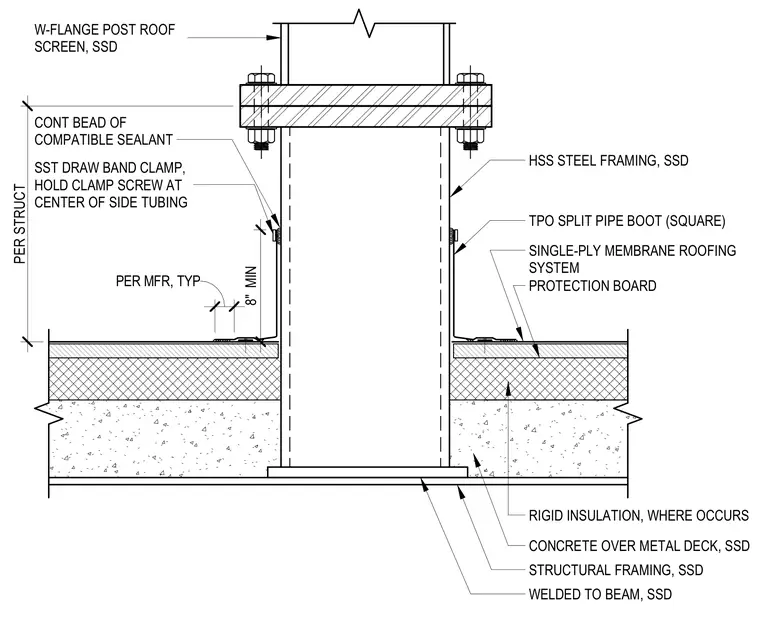

A hollow structural section steel framing member penetrates a single-ply membrane roofing system and protection board over rigid insulation and concrete fill on metal deck. A square thermoplastic polyolefin split pipe boot seals the roof penetration with a stainless steel draw band clamp positioned at the center of the side tubing. A continuous bead of compatible sealant applies at the upper junction beneath a flanged post roof screen. The structural steel framing rests on a base plate welded to the underlying beam and supports a wide-flange post roof screen secured with bolted plate connections.
HSS STEEL FRAMING, SSD TPO SPLIT PIPE BOOT (SQUARE) SINGLE-PLY MEMBRANE ROOFING SYSTEM PROTECTION BOARD CONCRETE OVER METAL DECK, SSD 8" MIN PER MFR, TYP SST DRAW BAND CLAMP, HOLD CLAMP SCREW AT CENTER OF SIDE TUBING CONT BEAD OF COMPATIBLE SEALANT W-FLANGE POST ROOF SCREEN, SSD PER STRUCT STRUCTURAL FRAMING, SSD WELDED TO BEAM, SSD RIGID INSULATION, WHERE OCCURS
