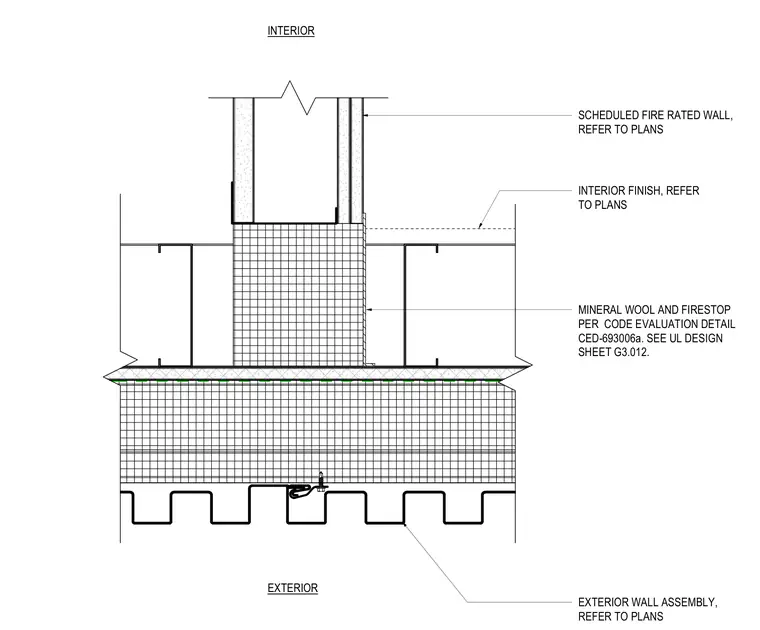

Mineral wool insulation and firestop sealant are installed at the junction of the fire-rated wall assembly and exterior wall per code evaluation detail CED-693006a and UL design sheet G3.012. The interior finish and scheduled fire-rated wall are installed per plans. The exterior wall assembly bears on the underlying metal decking and framing.
EXTERIOR INTERIOR EXTERIOR WALL ASSEMBLY, REFER TO PLANS SCHEDULED FIRE RATED WALL, REFER TO PLANS MINERAL WOOL AND FIRESTOP PER CODE EVALUATION DETAIL CED-693006a. SEE UL DESIGN SHEET G3.012. INTERIOR FINISH, REFER TO PLANS
