Architectural · A-G2GDY

Steel Pipe Guardrail and Handrail Details

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Retaining Walls Stairs Railings / Guards Floors / Slabs Drainage Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

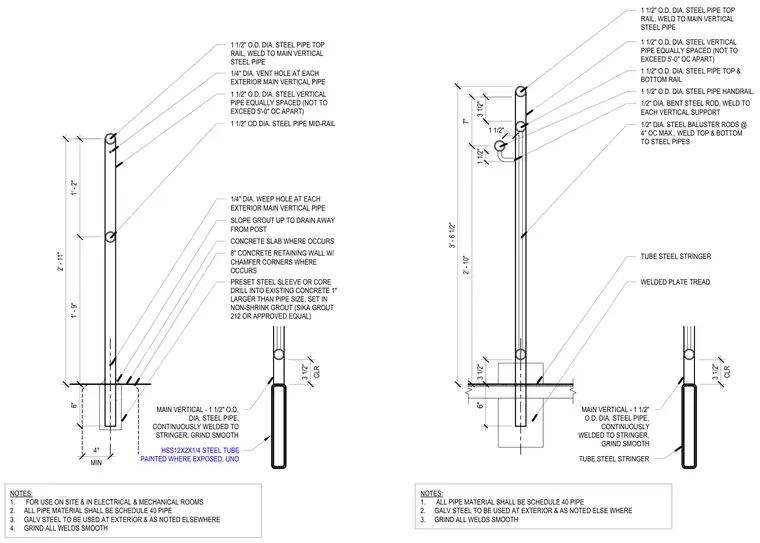

One-and-a-half-inch outside diameter schedule forty steel pipe guardrails and handrails are continuously welded to main vertical pipe supports spaced at a maximum of five feet on center. Exterior main vertical pipes feature quarter-inch diameter vent and weep holes, with grout sloped away from the post at concrete slabs and retaining walls. Posts are anchored into preset steel sleeves or core-drilled holes set in non-shrink grout one inch larger than the pipe size. Stair configurations include half-inch diameter baluster rods at four inches on center maximum welded top and bottom to steel pipes, supported by a tube steel stringer and welded plate tread.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
