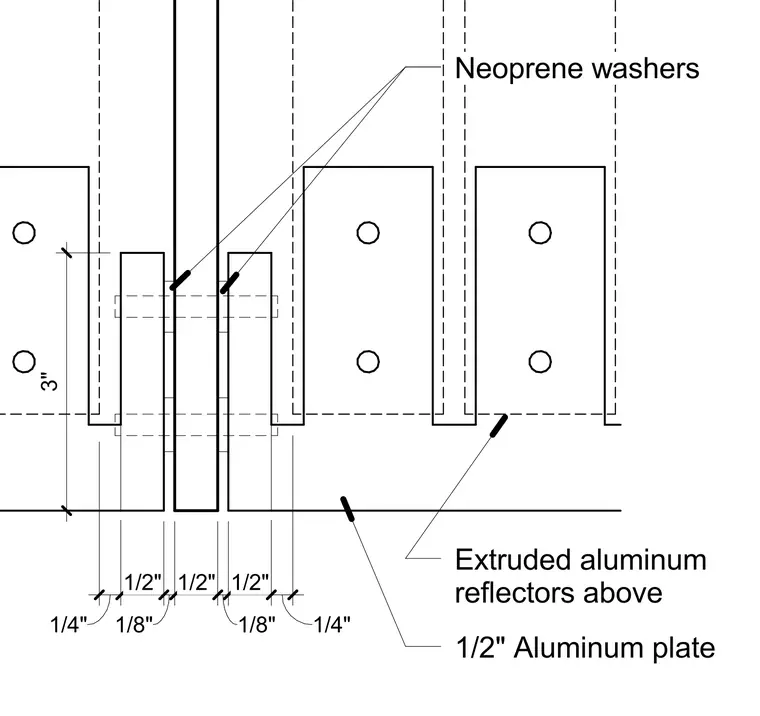

This connection detail features a one-half-inch aluminum plate flanked by extruded aluminum reflectors positioned above. Neoprene washers are incorporated at the fastener locations to provide cushioning and separation. Dimensioning includes vertical spacings of three inches and precise horizontal gaps of one-quarter inch, one-half inch, and one-eighth inch between the aluminum components.
1/4" 1/2" 1/8" 1/2" 1/8" 1/2" 1/4" 1/2" Aluminum plate Extruded aluminum reflectors above Neoprene washers 3"
