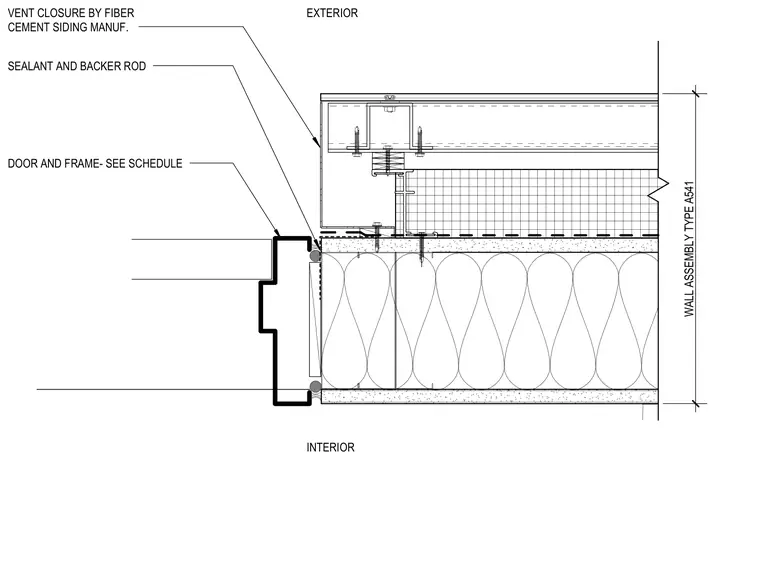

A door and frame, sized per the schedule, is installed adjacent to wall assembly type A541. A vent closure provided by the fiber cement siding manufacturer integrates with the exterior cladding. Sealant and backer rod seal the joint between the frame and the exterior finish.
WALL ASSEMBLY TYPE A541 DOOR AND FRAME- SEE SCHEDULE VENT CLOSURE BY FIBER CEMENT SIDING MANUF. SEALANT AND BACKER ROD EXTERIOR INTERIOR
