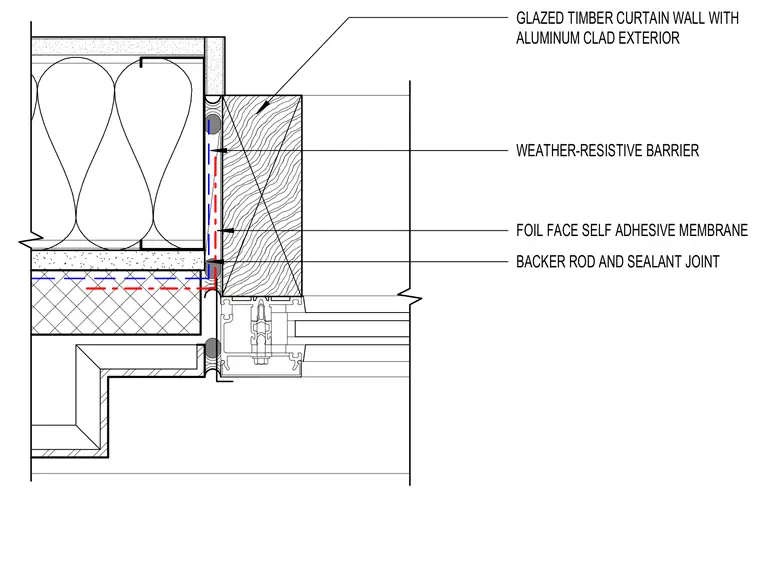

A glazed timber curtain wall with an aluminum-clad exterior connects to the building envelope at the jamb assembly. A weather-resistive barrier and a foil-faced self-adhesive membrane provide continuous moisture and air sealing along the transition. A backer rod and sealant joint seal the perimeter gap between the timber framing and the adjacent wall construction.
FOIL FACE SELF ADHESIVE MEMBRANE GLAZED TIMBER CURTAIN WALL WITH ALUMINUM CLAD EXTERIOR WEATHER-RESISTIVE BARRIER BACKER ROD AND SEALANT JOINT
