An HSS 8x8 hollow structural section column serves as the primary support, positioned along the center line of the screen. A W8 structural post extends beyond, connected via a WT5x15 structural tee at each end with typical spacing. An L8x8 angle is attached per plan to support components provided by the screen manufacturer. Fillet welds of 1/4 inch and 5/16 inch size secure the steel members typically top and bottom.

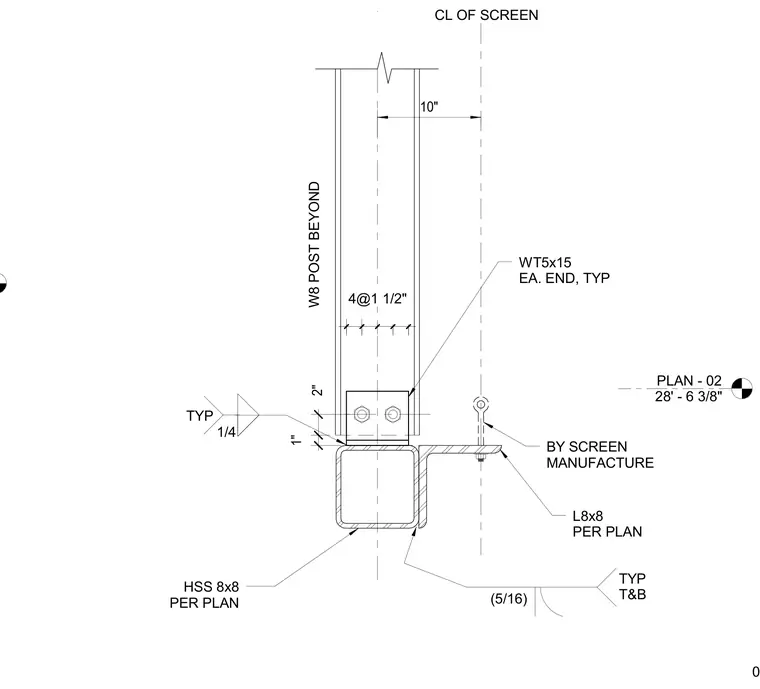

PLAN - 02 28' - 6 3/8" CL OF SCREEN W8 POST BEYOND HSS 8x8 PER PLAN (5/16) TYP T&B L8x8 PER PLAN 1" 2" . . . 4@1 1/2" WT5x15 EA. END, TYP BY SCREEN MANUFACTURE 10" TYP 1/4 017-S-01-3004
