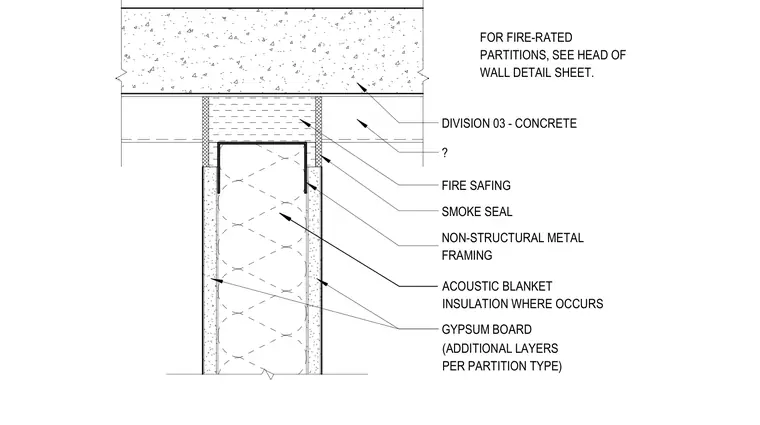

A non-rated partition head runs perpendicular to a concrete deck. Non-structural metal framing is topped with gypsum board and includes acoustic blanket insulation where required by the partition type. The gap between the top of the wall and the concrete slab is filled with fire safing insulation and a smoke seal.
DIVISION 03 - CONCRETE SMOKE SEAL FIRE SAFING GYPSUM BOARD NON-STRUCTURAL METAL FRAMING ? GYPSUM BOARD ACOUSTIC BLANKET INSULATION WHERE OCCURS FOR FIRE-RATED PARTITIONS, SEE HEAD OF WALL DETAIL SHEET. (ADDITIONAL LAYERS PER PARTITION TYPE)
