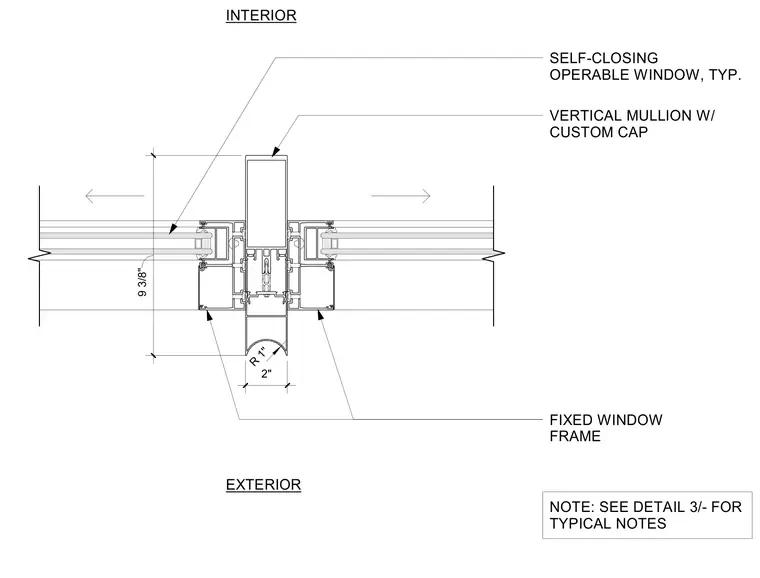

This plan detail shows a take-out window jamb assembly centered on a fixed vertical mullion with a custom cap. The vertical mullion connects the interior and exterior environments between a fixed window frame and a self-closing operable window typically used for service pass-throughs. Dimensions indicate a two-inch overall width with a one-inch radius curve and a depth of nine and three-eighths inches.
INTERIOR EXTERIOR FIXED WINDOW FRAME VERTICAL MULLION W/ CUSTOM CAP SELF-CLOSING OPERABLE WINDOW, TYP. NOTE: SEE DETAIL 3/- FOR TYPICAL NOTES 2" R 1" 9 3/8"
