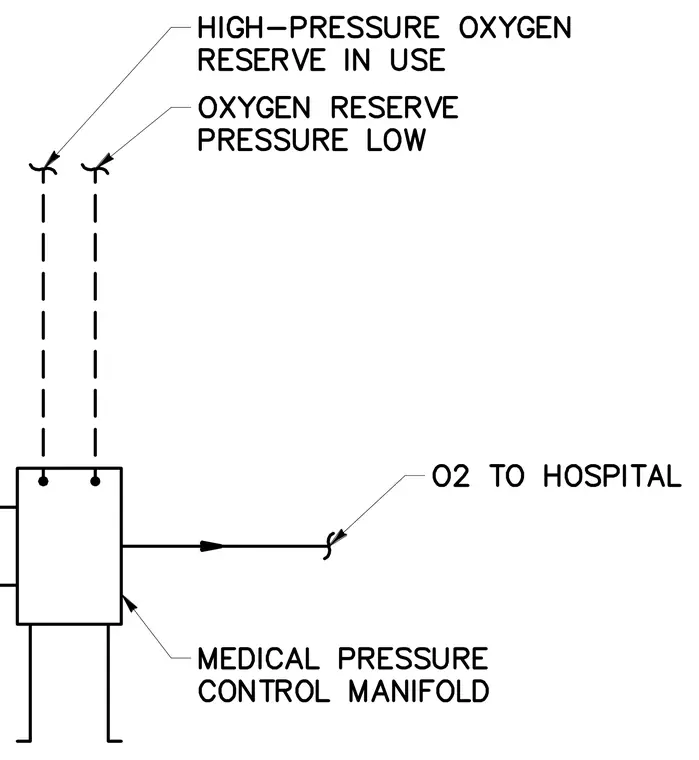

A medical pressure control manifold receives feed lines from high-pressure oxygen reserves and monitors reserve pressure levels. Alarm indicators signal when the high-pressure oxygen reserve is in use or when the reserve pressure is low. Regulated oxygen is supplied from the manifold directly to the hospital distribution system.
