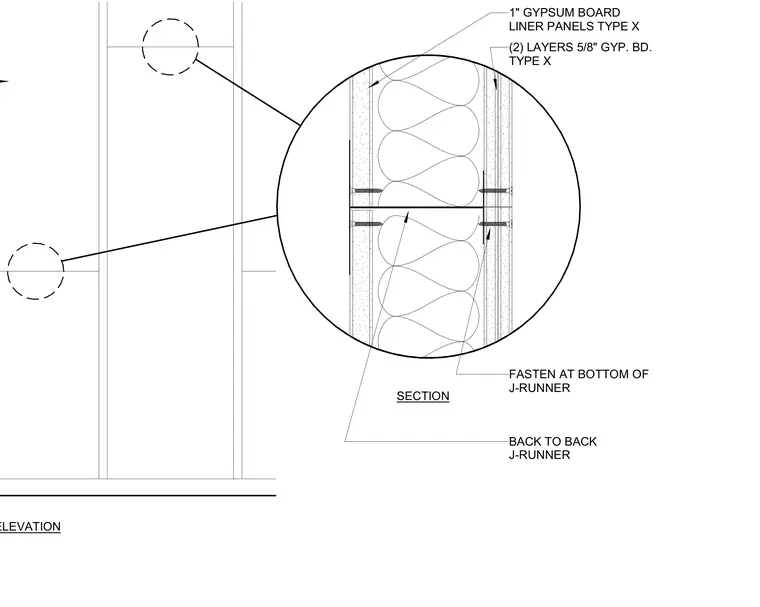

This wall detail features back-to-back J-runners tied together in a gypsum shaft wall partition assembly. One side of the framing receives one-inch thick gypsum board liner panels type X, while the opposing side is finished with two layers of five-eighths-inch thick gypsum board type X fastened at the bottom of the J-runner.
ELEVATION SECTION 1" GYPSUM BOARD LINER PANELS TYPE X (2) LAYERS 5/8" GYP. BD. TYPE X FASTEN AT BOTTOM OF J-RUNNER BACK TO BACK J-RUNNER
