Architectural · A-FZFY9

Window Head and Tilt-Up Panel Interface Detail

Materials

Concrete Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Windows Storefronts Facades / Cladding Waterproofing / Flashing Insulation

About this detail

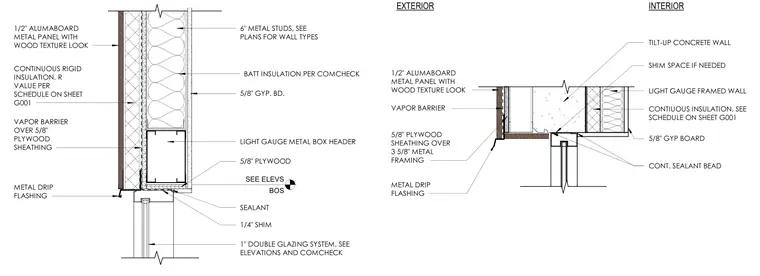

This window head detail features an exterior 1/2-inch Alumaboard metal panel with a wood texture look mounted over continuous rigid insulation, a vapor barrier, and 5/8-inch plywood sheathing. A light gauge metal box header supports the assembly above a one-inch double glazing system, separated by a 1/4-inch shim and continuous sealant. The interior framing consists of six-inch metal studs with batt insulation and a 5/8-inch gypsum board finish. A metal drip flashing is installed at the exterior transition, and a shim space sits adjacent to the tilt-up concrete wall.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
