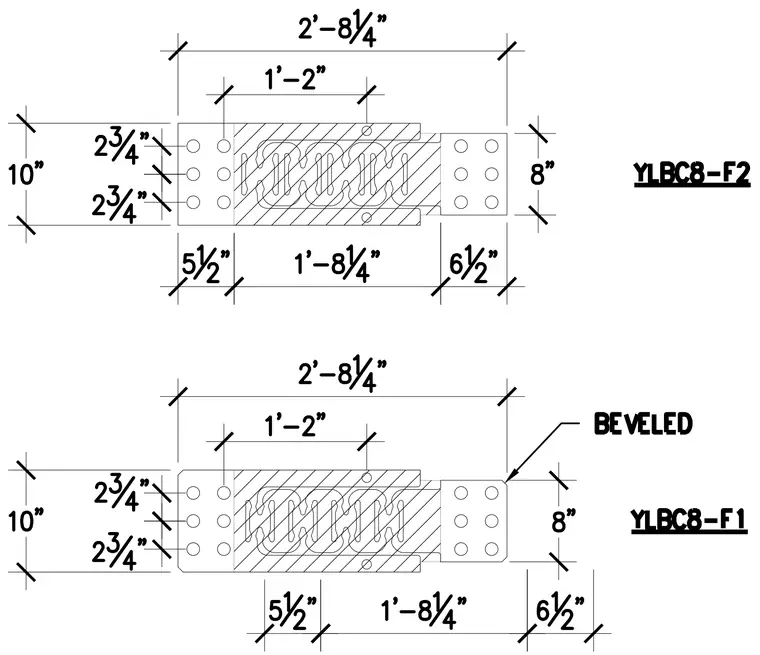

These architectural expansion joint cover assemblies, designated YLBC8-F1 and YLBC8-F2, feature multi-finger metal cover plates with mounting flanges. The YLBC8-F1 assembly includes a beveled edge along one anchorage plate. Both units show precise overall lengths of two feet eight and one-quarter inches, with ten-inch plate widths and detailed bolt hole spacing patterns. Mounting plates measure eight inches wide on one side and ten inches wide on the other, connected across a central mechanical expansion joint component.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
