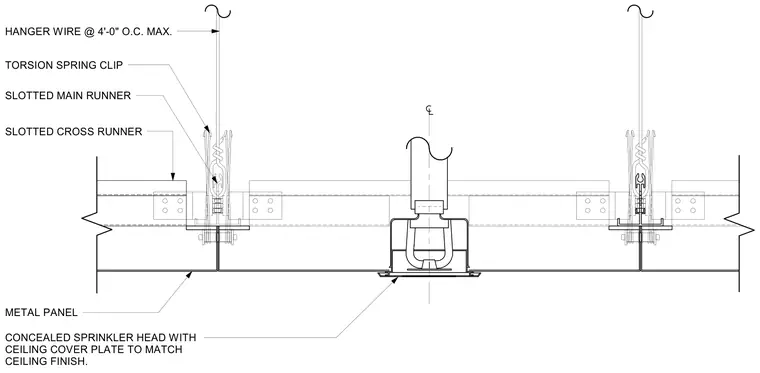

A concealed sprinkler head with a ceiling cover plate matches the surrounding metal panel ceiling finish, centered on the grid layout. The metal panel system is supported by slotted cross runners and slotted main runners secured with torsion spring clips. Hanger wires provide overhead support to the grid runners at a maximum spacing of four feet on center.
METAL PANEL SLOTTED CROSS RUNNER HANGER WIRE @ 4'-0" O.C. MAX. TORSION SPRING CLIP SLOTTED MAIN RUNNER CONCEALED SPRINKLER HEAD WITH CEILING COVER PLATE TO MATCH CEILING FINISH.
