Metal Stud Framing at Jamb and Sill

Materials

Cold-formed Steel Timber / Wood Metal (misc.)

Elements

About this detail

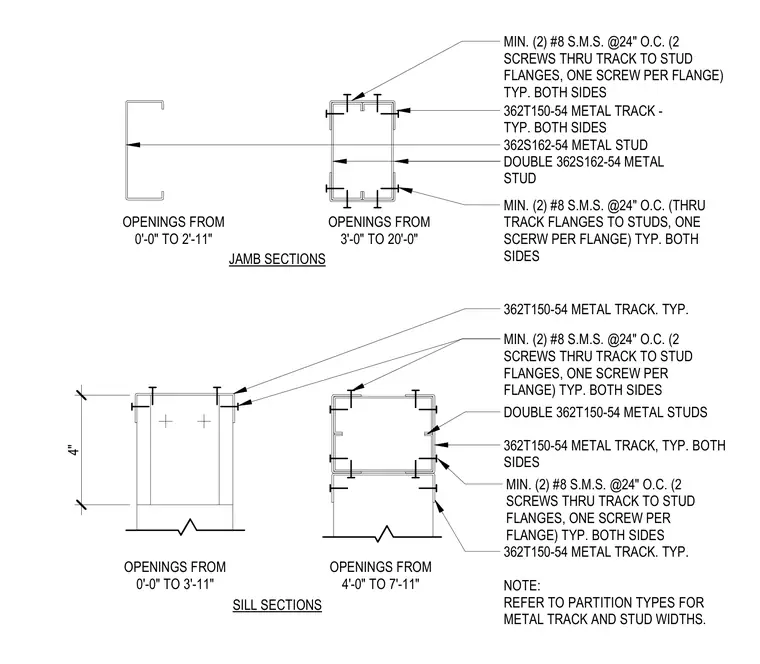

Cold-formed metal stud framing details for jambs and sills at door or window openings of varying widths. Jamb sections utilize 362S162-54 metal studs and 362T150-54 metal tracks, featuring single or double stud configurations depending on the opening span range. Connections are made using a minimum of two number 8 sheet metal screws spaced at twenty-four inches on center through track flanges to stud flanges, typically applied to both sides. Sill sections incorporate 362T150-54 metal tracks and double metal studs fastened with identical screw specifications. A general note directs the builder to refer to partition types for specific metal track and stud widths.
