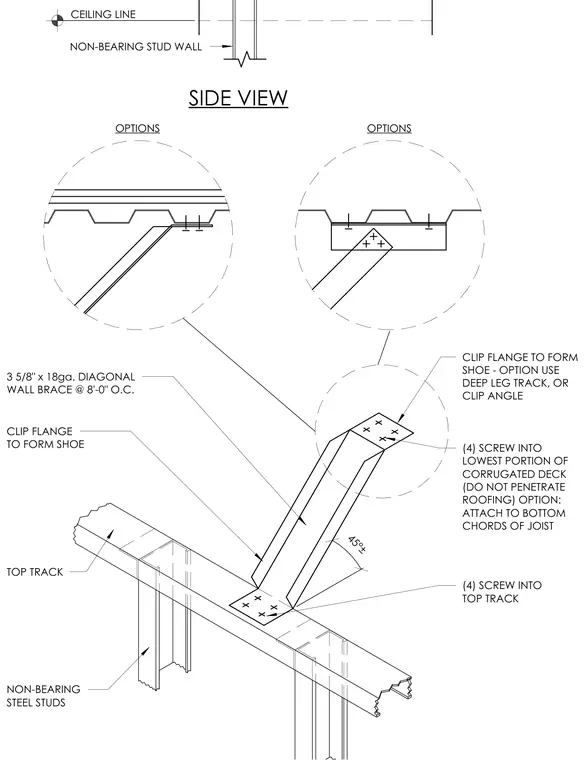

A diagonal wall brace composed of a 3-5/8 inch by 18 gauge steel stud is installed at forty-five degrees and spaced at eight feet on center. The top of the brace features a clipped flange forming a shoe fastened with four screws into the lowest portion of the corrugated metal deck without penetrating the roofing, or alternatively attached to the bottom chords of the open-web steel joist. The base of the diagonal brace connects to the top track of the non-bearing steel stud wall with four screws secured into the top track flange.
45°± CEILING LINE SIDE VIEW NON-BEARING STUD WALL CLIP FLANGE TO FORM SHOE - OPTION USE DEEP LEG TRACK, OR CLIP ANGLE (4) SCREW INTO LOWEST PORTION OF CORRUGATED DECK (DO NOT PENETRATE ROOFING) OPTION: ATTACH TO BOTTOM CHORDS OF JOIST (4) SCREW INTO TOP TRACK NON-BEARING STEEL STUDS CLIP FLANGE TO FORM SHOE 3 5/8" x 18ga. DIAGONAL WALL BRACE @ 8'-0" O.C. TOP TRACK OPTIONS OPTIONS
