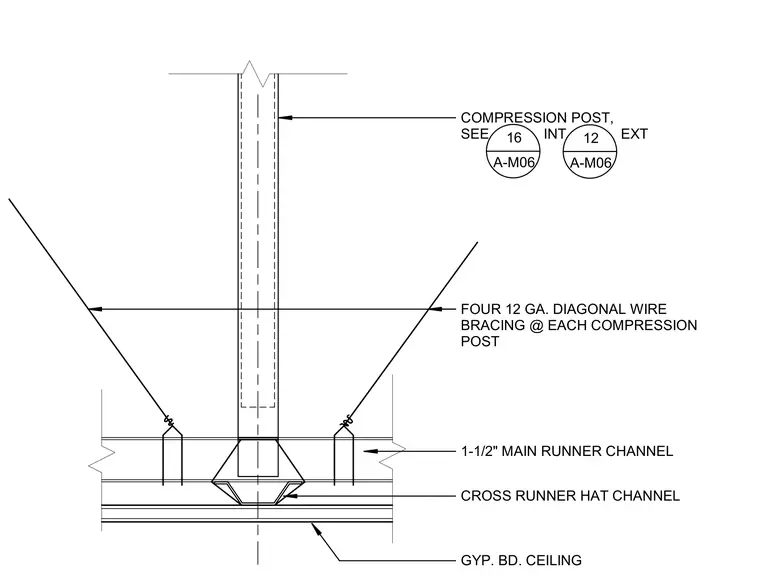

Suspended gypsum board ceiling framing supported by a vertical compression post with four twelve-gauge diagonal wire braces at each post. The ceiling grid consists of one-and-a-half-inch main runner channels supporting cross runner hat channels. A gypsum board ceiling is attached to the underside of the framing members.
FOUR 12 GA. DIAGONAL WIRE BRACING @ EACH COMPRESSION POST 1-1/2" MAIN RUNNER CHANNEL CROSS RUNNER HAT CHANNEL GYP. BD. CEILING COMPRESSION POST, SEE INT EXT 16 A-M06 12 A-M06
