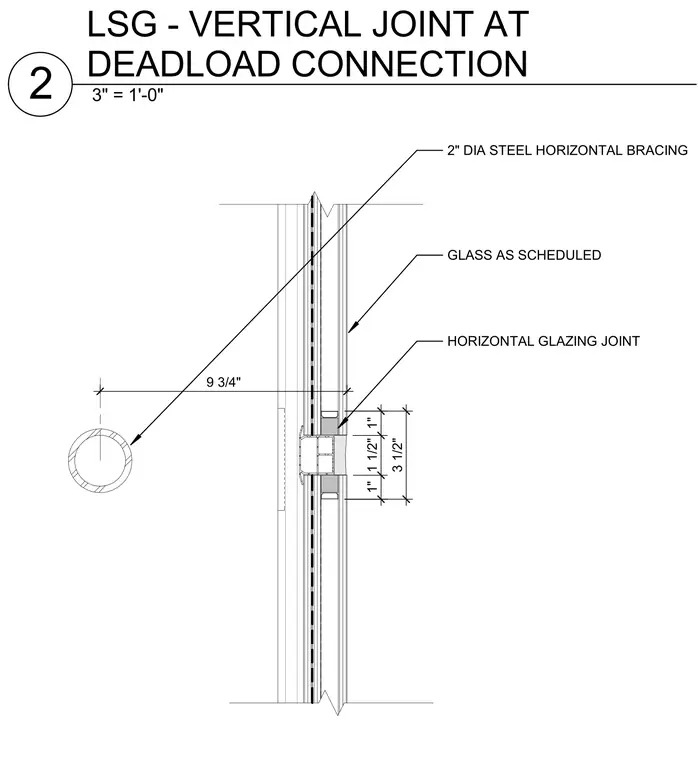

Laminated safety glass as scheduled is installed with a horizontal glazing joint measuring three and one-half inches overall. A two-inch diameter steel horizontal bracing member ties into the assembly at nine and three-quarters inches from the glass plane.
GLASS AS SCHEDULED 9 3/4" 1" 1 1/2" 1" 3 1/2" HORIZONTAL GLAZING JOINT 2" DIA STEEL HORIZONTAL BRACING 3" = 1'-0" 2 LSG - VERTICAL JOINT AT DEADLOAD CONNECTION
