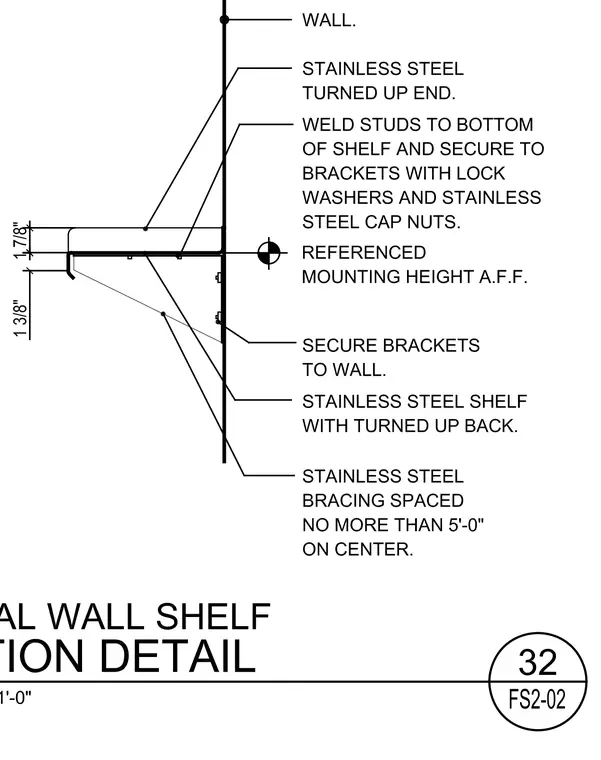

A stainless steel shelf with a turned up back and turned up end mounts to a wall at a referenced height above finished floor. The shelf is secured to brackets using weld studs on the bottom of the shelf, along with lock washers and stainless steel cap nuts. The brackets attach directly to the wall. Stainless steel bracing is spaced no more than five feet on center to provide additional support.
