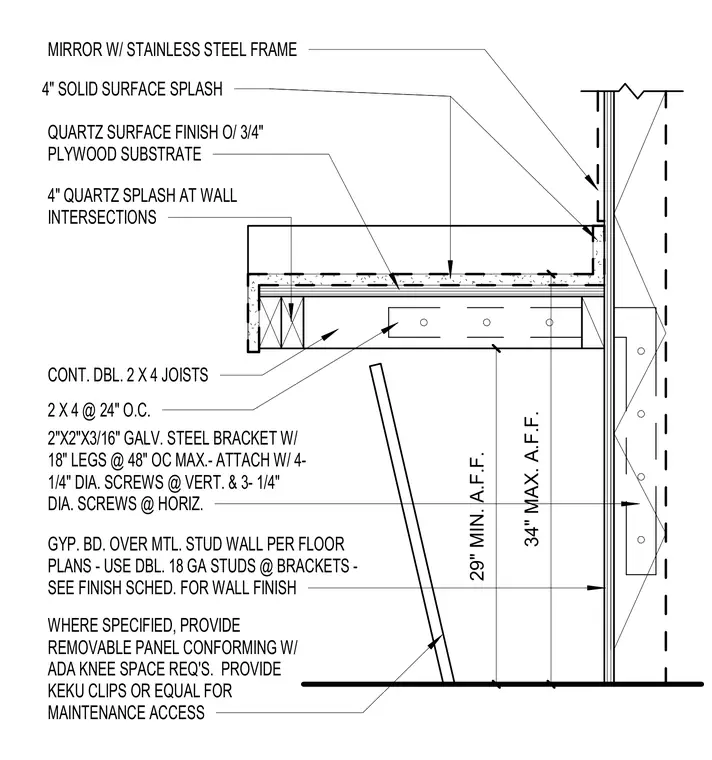

This wall-mounted lavatory counter features a quartz surface finish over a three-quarters-inch plywood substrate, framed with continuous double two-by-four joists spaced at twenty-four inches on center. The counter is supported by two-by-two-by-three-sixteenth-inch galvanized steel brackets with eighteen-inch legs spaced at forty-eight inches on center maximum. Each bracket attaches to the wall with four quarter-inch diameter screws on the vertical leg and three quarter-inch diameter screws on the horizontal leg. The wall assembly consists of gypsum board over metal studs, reinforced with double eighteen-gauge studs at the bracket locations. A four-inch solid surface splash and a four-inch quartz splash are provided at the wall intersections. Below the counter, a mirror with a stainless steel frame is mounted to the wall, and a removable panel with Keku clips is provided where specified to maintain ADA knee space requirements and allow maintenance access between twenty-nine and thirty-four inches above the finished floor.
MIRROR W/ STAINLESS STEEL FRAME 4" SOLID SURFACE SPLASH QUARTZ SURFACE FINISH O/ 3/4" PLYWOOD SUBSTRATE 4" QUARTZ SPLASH AT WALL INTERSECTIONS CONT. DBL. 2 X 4 JOISTS 2 X 4 @ 24" O.C. 2"X2"X3/16" GALV. STEEL BRACKET W/ 18" LEGS @ 48" OC MAX.- ATTACH W/ 4- 1/4" DIA. SCREWS @ VERT. & 3- 1/4" DIA. SCREWS @ HORIZ. GYP. BD. OVER MTL. STUD WALL PER FLOOR PLANS - USE DBL. 18 GA STUDS @ BRACKETS - SEE FINISH SCHED. FOR WALL FINISH WHERE SPECIFIED, PROVIDE REMOVABLE PANEL CONFORMING W/ ADA KNEE SPACE REQ'S. PROVIDE KEKU CLIPS OR EQUAL FOR MAINTENANCE ACCESS 34" MAX. A.F.F. 29" MIN. A.F.F.
