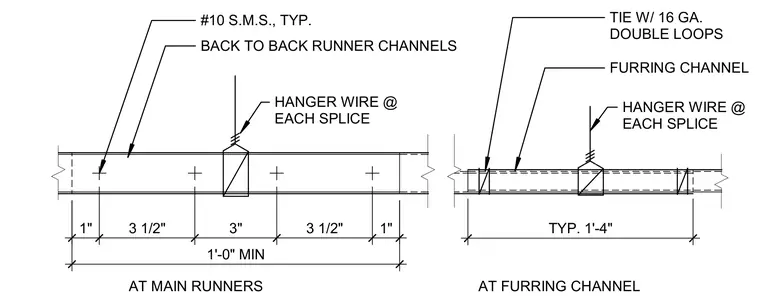

Back-to-back runner channels are joined with a minimum lap of one foot, fastened with number ten sheet metal screws spaced at three and a half inches with one-inch end clearances. Hanger wires are wrapped at each splice and tied with sixteen-gauge double loops. Furring channels are likewise tied with sixteen-gauge double loops at each splice and supported by hanger wires spaced at one foot four inches typical.
1" 3 1/2" 3" 3 1/2" 1" TYP. 1'-4" AT MAIN RUNNERS AT FURRING CHANNEL #10 S.M.S., TYP. BACK TO BACK RUNNER CHANNELS HANGER WIRE @ EACH SPLICE TIE W/ 16 GA. DOUBLE LOOPS FURRING CHANNEL HANGER WIRE @ EACH SPLICE 1'-0" MIN
