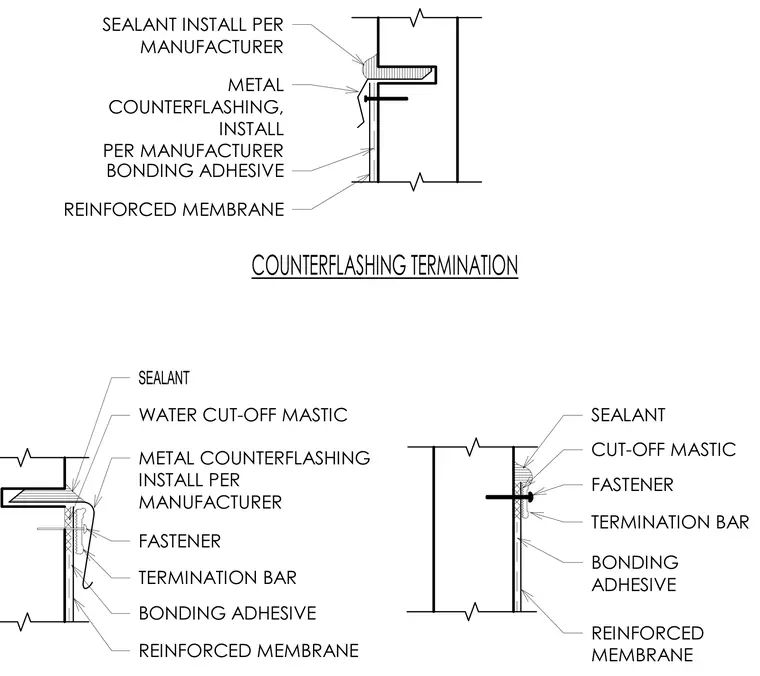

Metal counterflashing is secured over a reinforced membrane adhered with bonding adhesive. A termination bar and fastener secure the assembly, sealed with water cut-off mastic and finished with manufacturer-specified sealant.
SEALANT INSTALL PER MANUFACTURER METAL COUNTERFLASHING, INSTALL PER MANUFACTURER BONDING ADHESIVE REINFORCED MEMBRANE COUNTERFLASHING TERMINATION SEALANT WATER CUT-OFF MASTIC METAL COUNTERFLASHING INSTALL PER MANUFACTURER FASTENER TERMINATION BAR BONDING ADHESIVE REINFORCED MEMBRANE SEALANT CUT-OFF MASTIC FASTENER TERMINATION BAR BONDING ADHESIVE REINFORCED MEMBRANE
