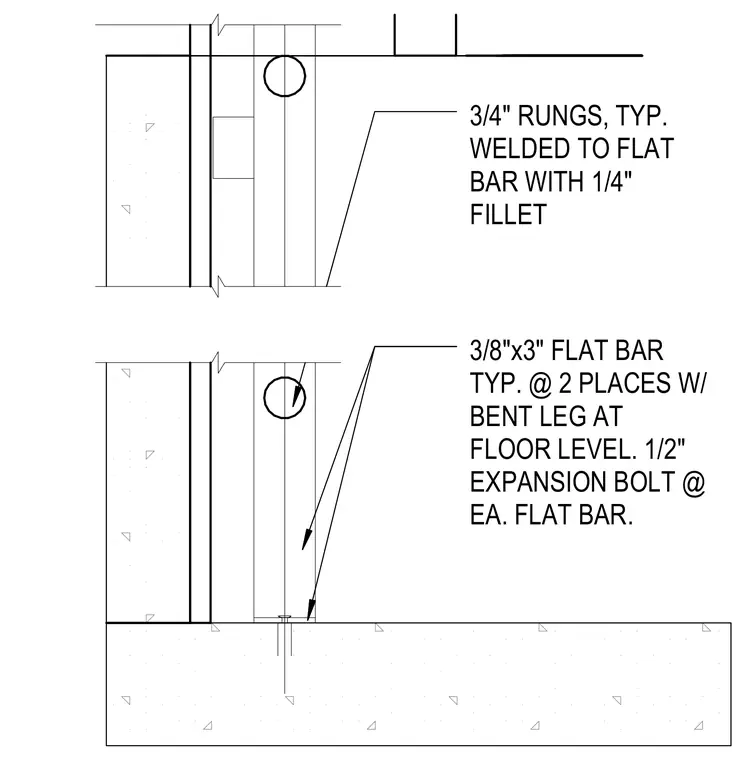

Three-quarter-inch rungs weld to vertical flat bars with a quarter-inch fillet weld at each connection. Three-eighths-by-three-inch flat bars at two places feature a bent leg anchoring at the floor level. One-half-inch expansion bolts secure each flat bar to the concrete floor slab.
3/4" RUNGS, TYP. WELDED TO FLAT BAR WITH 1/4" FILLET 3/8"x3" FLAT BAR TYP. @ 2 PLACES W/ BENT LEG AT FLOOR LEVEL. 1/2" EXPANSION BOLT @ EA. FLAT BAR.
