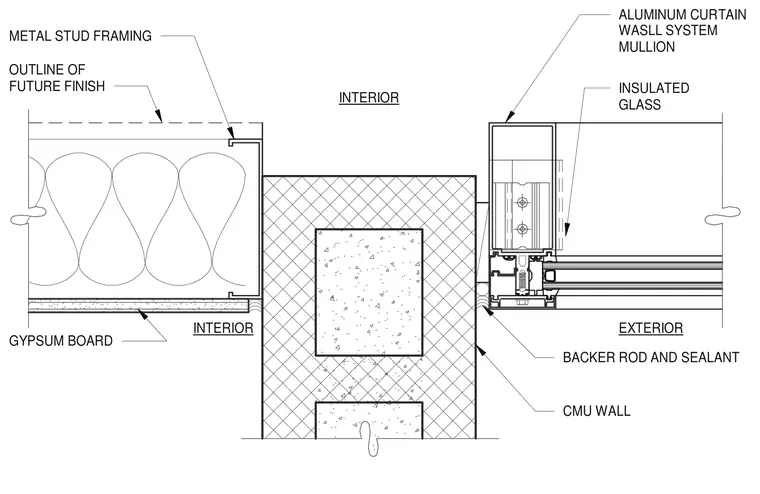

An aluminum curtain wall system mullion ties into the exterior face of a concrete masonry unit wall, sealed at the joint with a backer rod and sealant. Insulated glass is glazed into the storefront system. On the interior side, metal stud framing supports an outline of future finish and gypsum board.
INSULATED GLASS OUTLINE OF FUTURE FINISH METAL STUD FRAMING INTERIOR EXTERIOR BACKER ROD AND SEALANT GYPSUM BOARD ALUMINUM CURTAIN WASLL SYSTEM MULLION CMU WALL INTERIOR
