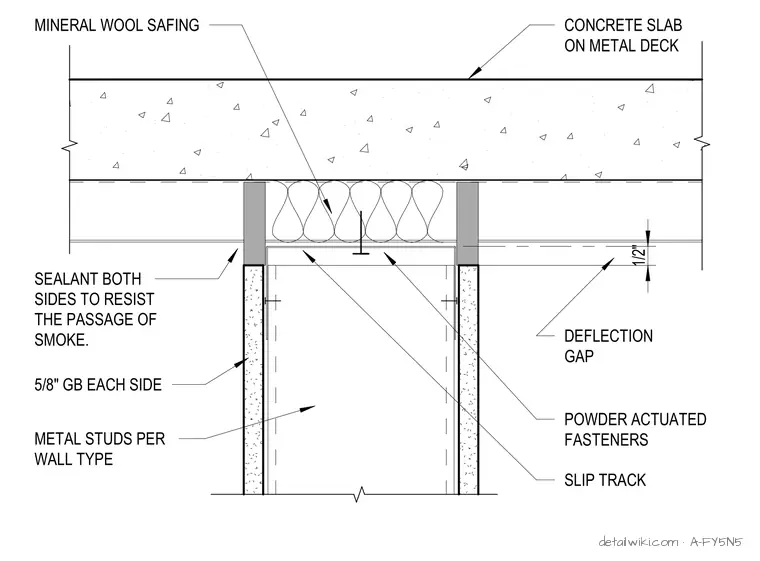

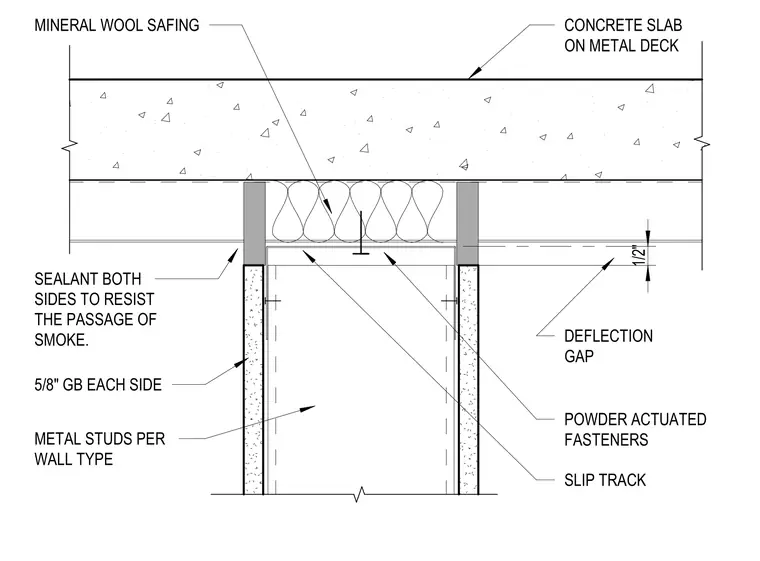

A-FY5N5 — Perp. To Flute

Architectural · A-FY5N5

Perp. To Flute

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A508
Discipline: Architectural

Materials

Cold-formed Steel Concrete Gypsum / Drywall Metal (misc.)Steel

Elements

Anchors / Embeds Decks Expansion / Control Joints Floors / Slabs Insulation Partitions Walls

Connections

Deck Attachment Expansion / Slip Connection

Text on the drawing

1/2" DEFLECTION GAP 5/8" GB EACH SIDE SEALANT BOTH SIDES TO RESIST THE PASSAGE OF SMOKE. SLIP TRACK CONCRETE SLAB ON METAL DECK METAL STUDS PER WALL TYPE POWDER ACTUATED FASTENERS MINERAL WOOL SAFING
