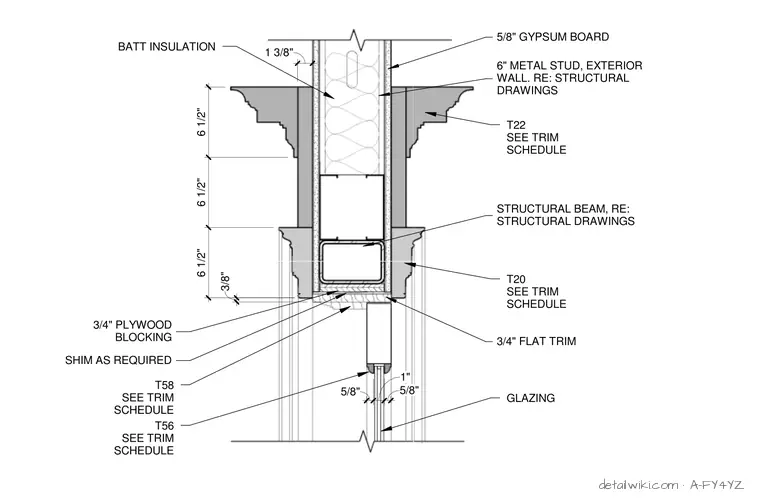

The door head detail is framed with a structural beam supported by six-inch exterior metal studs filled with batt insulation and faced with five-eighths-inch gypsum board. Three-quarter-inch plywood blocking and shims as required provide backing for custom architectural wood trim profiles designated as T20, T22, T56, and T58 per the trim schedule. A three-quarter-inch flat trim piece finishes the header junction. Glazing extends below the head assembly with one-inch and five-eighths-inch dimensional clearances.
5/8" 1" 5/8" 3/8" 6 1/2" 6 1/2" 6 1/2" 1 3/8" 5/8" GYPSUM BOARD 6" METAL STUD, EXTERIOR WALL. RE: STRUCTURAL DRAWINGS STRUCTURAL BEAM, RE: STRUCTURAL DRAWINGS T20 SEE TRIM SCHEDULE 3/4" FLAT TRIM 3/4" PLYWOOD BLOCKING GLAZING T56 SEE TRIM SCHEDULE T22 SEE TRIM SCHEDULE T58 SEE TRIM SCHEDULE SHIM AS REQUIRED BATT INSULATION
