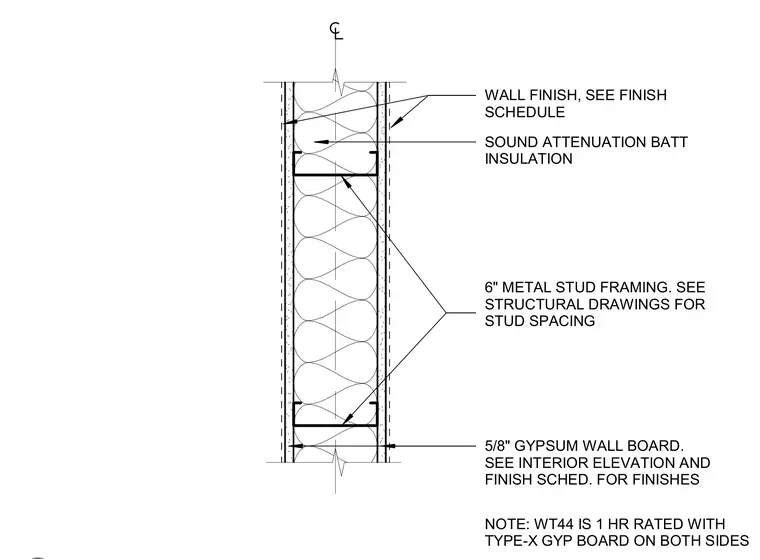

This wall assembly consists of 6-inch cold-formed metal stud framing with stud spacing sized per structural drawings. Sound attenuation batt insulation fills the cavity between the studs. Layers of 5/8-inch Type-X gypsum wall board are fastened to both sides of the framing to achieve a 1-hour fire rating. Wall finishes are applied to the exterior gypsum board faces as specified in the finish schedule.
6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES SOUND ATTENUATION BATT INSULATION WALL FINISH, SEE FINISH SCHEDULE NOTE: WT44 IS 1 HR RATED WITH TYPE-X GYP BOARD ON BOTH SIDES
