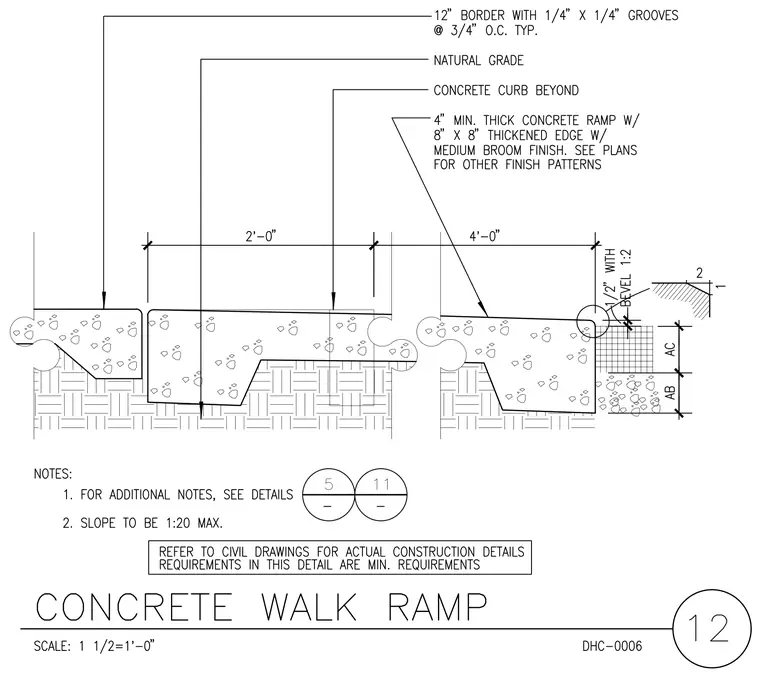

Four inch minimum thick concrete ramp with eight by eight inch thickened edge and medium broom finish bearing on prepared subbase. A twelve inch border features one quarter inch by one quarter inch grooves at three quarters of an inch on center typically. Natural grade transitions into a concrete curb beyond. A one to twenty maximum slope applies.
