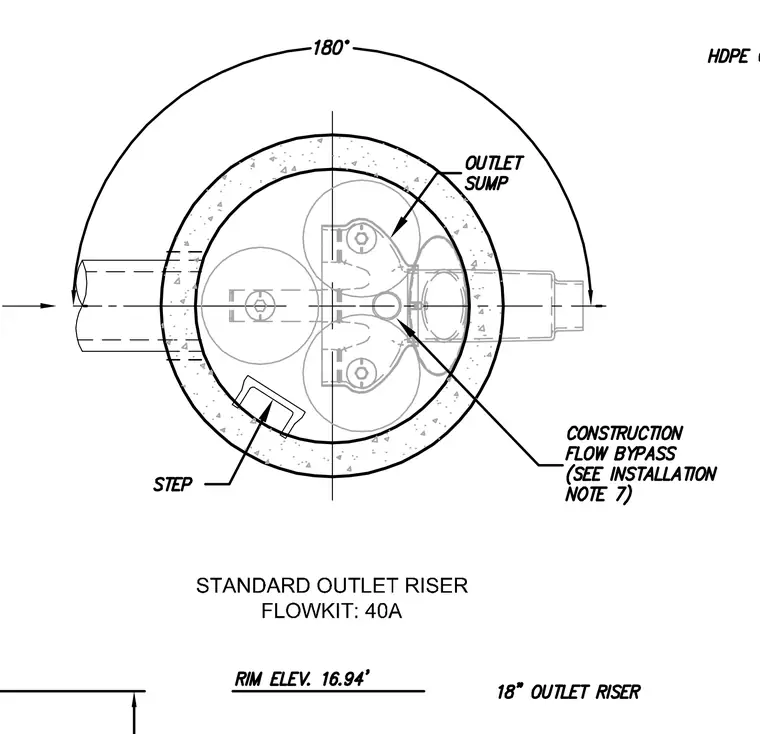

This plan detail shows a standard outlet riser flowkit with an interior 18-inch outlet riser, dual outlet sumps, a construction flow bypass, an internal step, and an exterior HDPE pipe connection configured at a 180-degree sweep. The structure has a rim elevation of 16.94 feet and incorporates internal flow management channels per installation note 7.
