Architectural · A-FXPSW

Curtain Wall Transition with U-Clip and Wood Batten

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Curtain Walls Facades / Cladding Connections / Plates

Connections

HSS Connection

About this detail

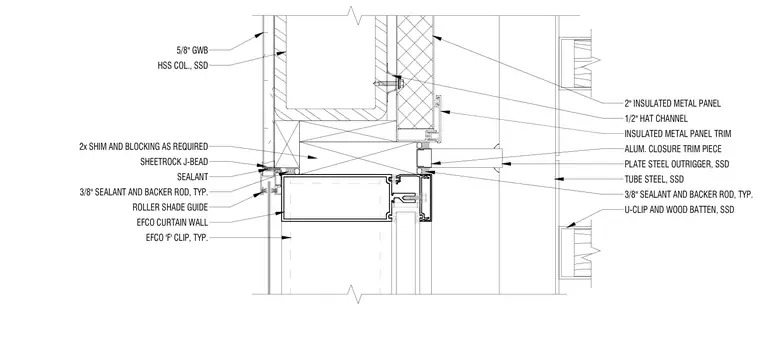

An intersection of an Efco curtain wall and an insulated metal panel system supported by a hollow structural section steel column. The exterior utilizes a two-inch insulated metal panel secured over half-inch hat channels and plate steel outriggers, finished with aluminum closure trim pieces and three-eighths-inch sealant with backer rod joints. The interior framing incorporates two-inch shim and wood blocking secured with U-clips and wood battens, faced with five-eighths-inch gypsum wallboard and finished with sheetrock J-bead and sealant at the frame transition. A roller shade guide is integrated into the head of the Efco curtain wall, which is anchored using Efco F-clips.
