Architectural · A-FXEQS

Slab on Grade Termination at Concrete Column

Materials

Elements

Columns Walls Floors / Slabs Foundations / Footings Waterproofing / Flashing Drainage

About this detail

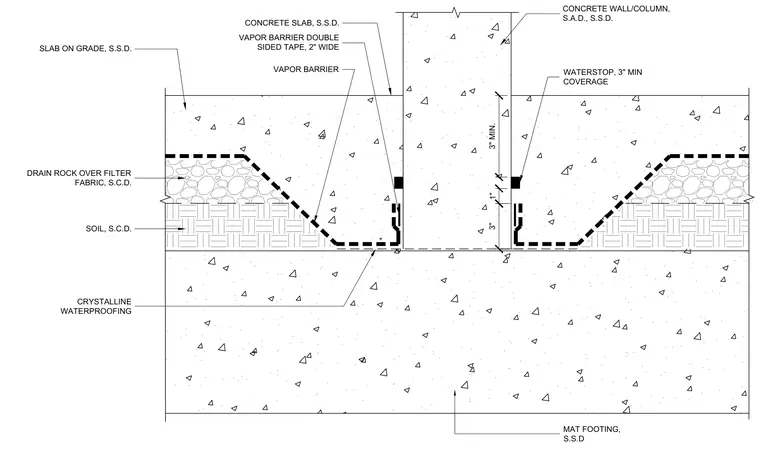

A concrete slab-on-grade terminates at a vertical concrete wall or column supported by a mat footing below. A waterstop is embedded at the vertical joint between the slab and column with specified minimum coverage. A continuous vapor barrier spans beneath the slab, sealed with two-inch-wide double-sided tape at the column interface. Sub-slab drainage consists of drain rock over filter fabric resting on compacted soil. Crystalline waterproofing is applied throughout the concrete elements for moisture mitigation.
