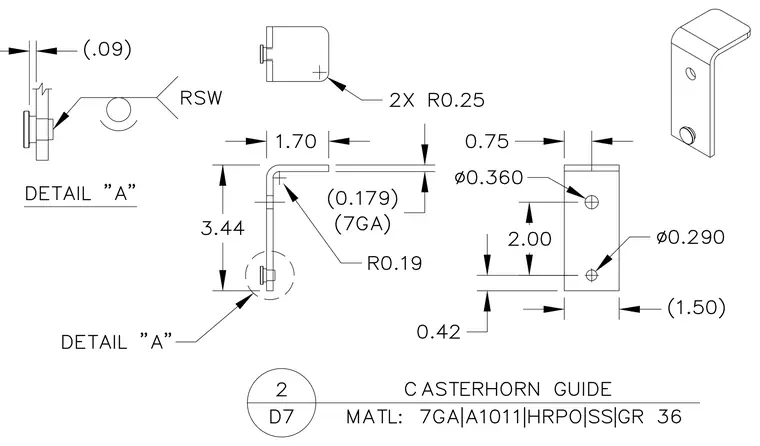

A formed metal casterhorn guide is fabricated from 7-gauge A1011 hot-rolled pickled and oiled Grade 36 steel. The angle bracket features an overall thickness of 0.179 inches with a 1.70-inch top leg and a 3.44-inch vertical leg, joined by an interior radius of 0.19 inches and exterior corner radii of 0.25 inches. The vertical leg includes two drilled holes with diameters of 0.360 inches and 0.290 inches, spaced 2.00 inches apart, along with a resistance spot-welded pin detail. Material and dimensional callouts define the fabrication geometry for the component.
(.09) 0.42 ∅0.360 ∅0.290 0.75 1.70 (0.179) (7GA) R0.19 3.44 2X R0.25 RSW 2.00 (1.50) DETAIL "A" DETAIL "A" CASTERHORN GUIDE 2 D7 MATL: 7GA|A1011|HRPO|SS|GR 36 — ( ] A J I ! \ ( i J
