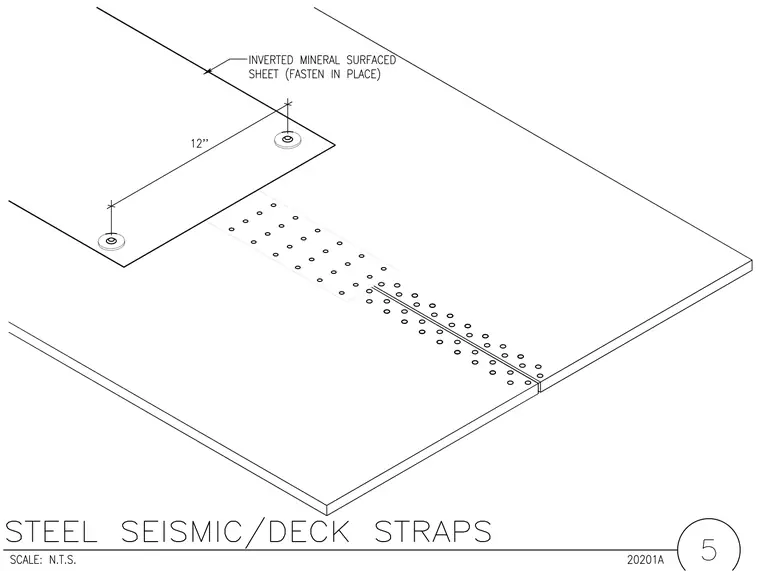

An inverted mineral surfaced sheet is fastened in place across the deck joint spaced at twelve inches on center. Perforated steel seismic deck straps bridge the deck joint and are secured with mechanical fasteners on both sides of the seam.
